特征:
易于安装,性能稳定
抗过载能力强
适用于限位过载用途
IP67 防护
SPECIFICATIONS 技术参数 | |||
Full Scale Output 灵敏度输出 | 2.0±0.5%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
Zerc Balance 零点输出 | ±0.04mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
Nonlinearity 非线性 | <±0.03% | Nominal Temperature Range工作温度 | -10℃to40℃/14℉to104℉ |
Repeatability 重复性 | <±0.03% | ||
Hysteresis Error 滞后 | <±0.03% | Safe Overload 安全过载 | 150% of full scale |
Creep in 30 min 30分钟蠕变 | <±0.05% | Breaking Overload 极限过载 | 300% of full scale |
Input Resistance 输入电阻 | 415Ω±5 | IP Rating 防护等级 | IP67 |
Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
Element Materia 材质 | Aluminum 铝合金 |

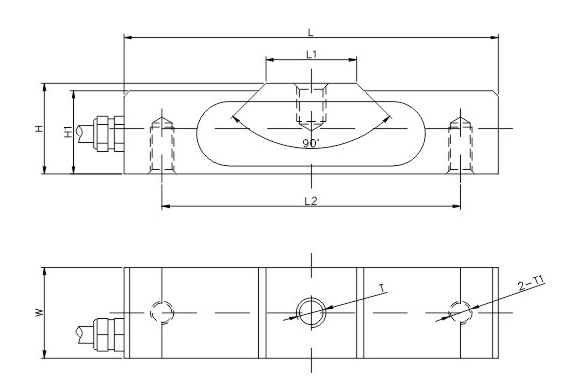

DIMENSIONS 尺寸 | ||||||||
RATE CAPACITY 量程 | L | L1 | L2 | W | H | H1 | T | T1 |
kg/mm 800 | 128 | 31 | 102 | 31 | 31 | 28.5 | M10深13 | M8深16 |
lb/inches(conversion of above dimensions 由以上尺寸转换) | ||||||||
1760 | 5.04 | 1.22 | 4.02 | 1.22 | 1.22 | 1.12 | M10 DP 0.51 | M8 DP 0.63 |
