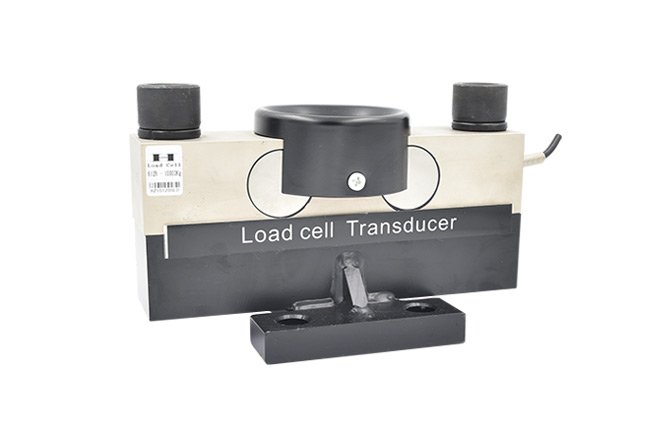

量程:10t,20t,30t,40t,50t
适用于汽车衡,以及其他称重设备
特征:
符合OIML认证指标
易于安装,性能稳定
防爆级(Ex ib II Ct4)
合金钢
SPECIFICATIONS 技术参数 | |||
Full Scale Output 灵敏度输出 | 2.0±0.1%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
Zerc Balance 零点输出 | ±0.008mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
Nonlinearity 非线性 | <±0.3% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
Repeatability 重复性 | <±0.3% | ||
Hysteresis Error 滞后 | <±0.3% | Safe Overload 安全过载 | 150% of full scale |
Creep in 30 min 30分钟蠕变 | <±0.3% | Breaking Overload 极限过载 | 300% of full scale |
Input Resistance 输入电阻 | 775Ω±5 | IP Rating 防护等级 | IP67/IP68 |
Outnput Resistance 输出电阻 | 702Ω±2 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
Element Materia 材质 | Alloy steel/Stainless steel 合金钢/不锈钢 |

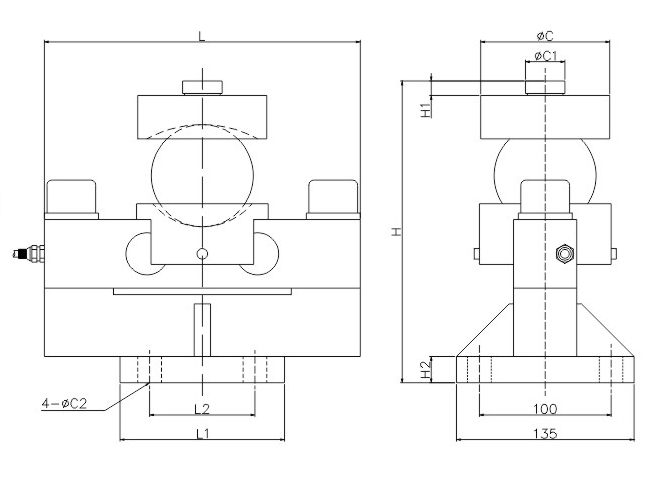

DIMENSIONS 尺寸 | |||||||||||
RATE CAPACITY 量程 | C | C1 | C2 | L | L1 | L2 | W | W1 | H | H1 | H2 |
t/mm | |||||||||||
10;20;30 | 88 | 30 | 18 | 240 | 125 | 80 | 135 | 100 | 229.3 | 11 | 20 |
40;50 | 97 | 40 | 18 | 340 | 160 | 124 | 160 | 124 | 258.7 | 11 | 30 |
klb/inches | |||||||||||
22;44;66 | 3.46 | 1.18 | 0.71 | 9.45 | 5.98 | 3.15 | 5.31 | 3.94 | 9.03 | 0.43 | 0.78 |
88;110 | 3.82 | 1.57 | 0.71 | 13.38 | 6.30 | 4.88 | 6.30 | 4.88 | 10.18 | 0.43 | 1.18 |
