特征：
高精度
铝制平行梁结构
整体安装
| SPECIFICATIONS 技术参数 | |||
| Full Scale Output 灵敏度输出 | 2.3±0.04%mV/V | Recommended Excitation 使用电压 | 10V(15V Maximnm) |
| Zerc Balance 零点输出 | ±0.02mV/V | Insulation Resistance 缘阻抗 | >2[50V DC]GΩ |
| Nonlinearity 非线性 | <±0.02% | Nominal Temperature Range 工作温度 | -10℃to40℃/14℉to104℉ |
| Repeatability 重复性 | <±0.02% | ||
| Hysteresis Error 滞后 | <±0.02% | Safe Overload 安全过载 | 150% of full scale |
| Creep in 30 min 30分钟蠕变 | <±0.02% | Breaking Overload 极限过载 | 200% of full scale |
| Input Resistance 输入电阻 | 405Ω±30 | IP Rating 防护等级 | IP67 |
| Outnput Resistance 输出电阻 | 350Ω±3 | Cable Color Code 颜色码 | Exc(输入)+:Red(红);Exc(输入) -Black(黑);Sig(输出)+Green(绿); Sig(输出)-:Whit白 Shield Bare(屏蔽) |
| Element Materia 材质 | Aluminum 铝合金 | ||

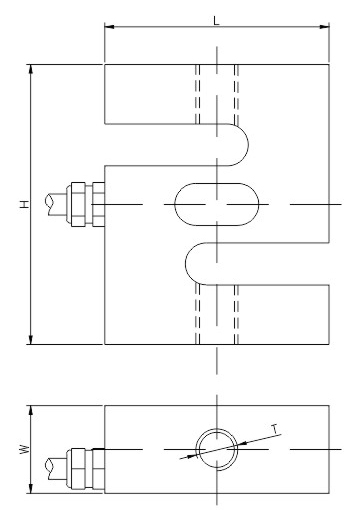

| DIMENSIONS 尺寸 | ||||
RATE CAPACITY 量程 | L | W | H | T |
| kg/mm | ||||
| 500 | 64 | 25 | 80 | M12×1.75 |
| lb/inches(conversion of above dimensions 由以上尺寸转换) | ||||
| 1000 | 2.52 | 0.98 | 3.15 | M12×1.75 |
